How to Add a Cluster on GlobalAI

Create a cluster is a fundamental step in setting up your infrastructure on GlobalAI. A cluster is a collection of nodes that run containerized applications managed by Kubernetes. Follow the steps below to create a new cluster on GlobalAI.

Prerequisites​

Before creating a cluster, ensure you have the following:

  • An active GlobalAI account with the necessary permissions to create clusters.
  • A previously configured Kubernetes cluster that you want to add to GlobalAI.

Create a cluster​

To create a new cluster, follow these steps:

  1. On the GlobalAI dashboard, access the Clusters section on the sidebar.
  2. Click on the Add existing cluster button.

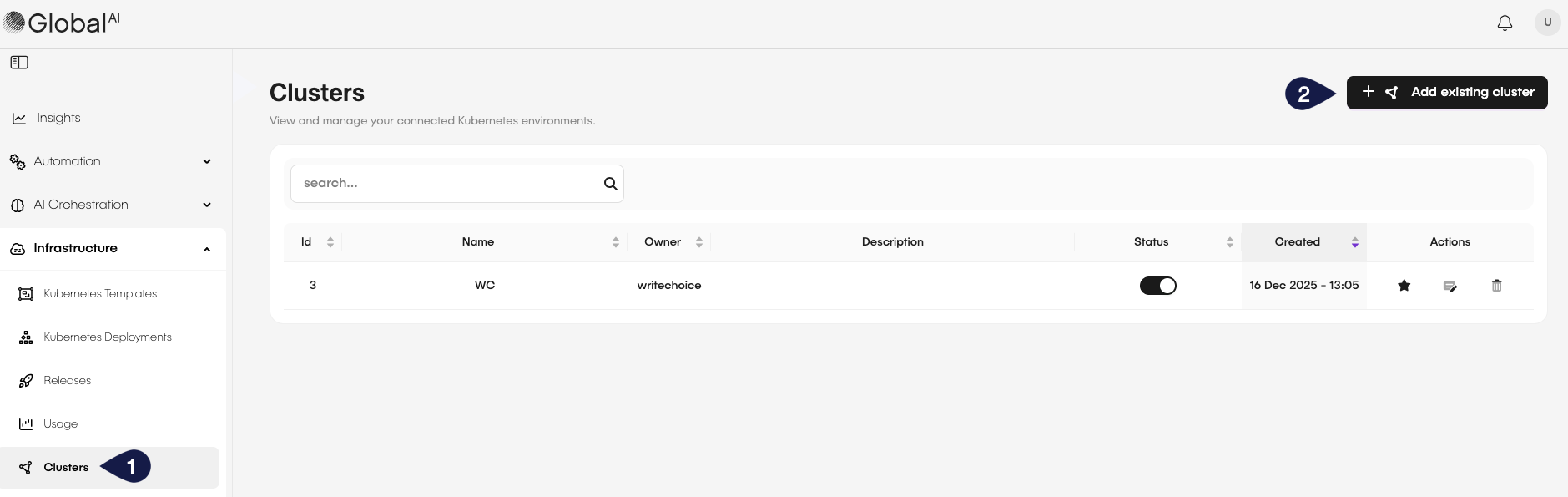

Add Existing Cluster Button
  1. On the Add Existing Cluster page, fill in the required details:
    • Name: Provide a unique name for the cluster.
    • Status: Toggle the button to set the cluster as active or inactive.
    • Prometheus URL: Provide the URL for Prometheus monitoring if applicable.
    • Usage Service URL: Provide the URL for the usage service if applicable.
    • Details: Add details about the cluster, such as its purpose or configuration.

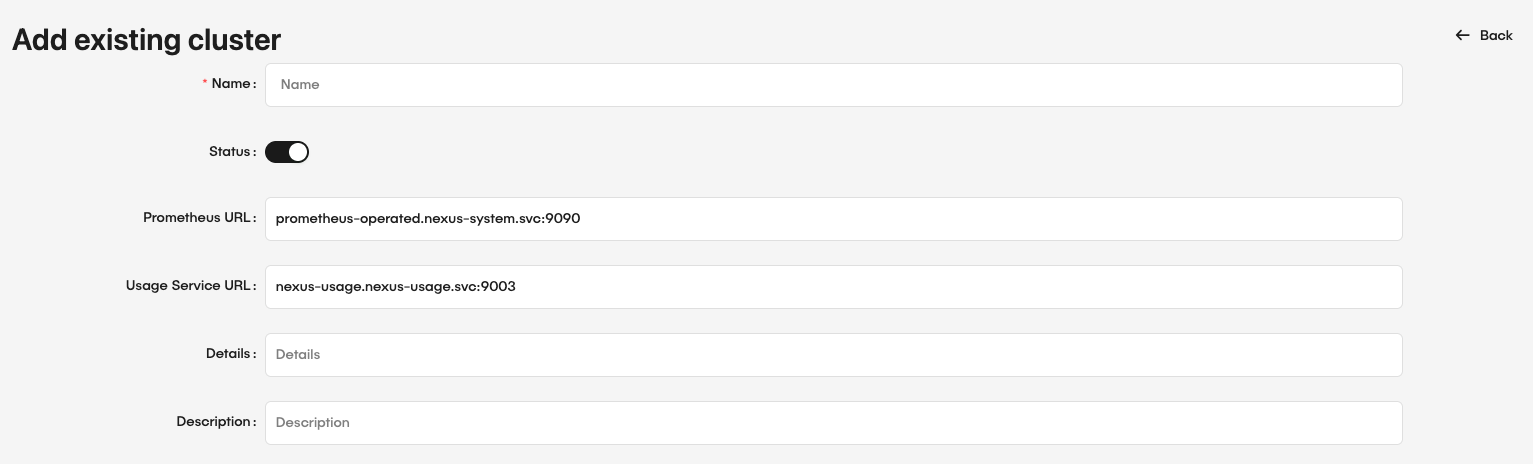

Cluster Details

Configure the cluster connection​

Before you can use the cluster, you need to configure the connection settings. To do this, you have option: Cluster Config or AKS Config.

To use the Cluster Config option, follow these steps:

  1. On the Cluster Config tab, you will need to add the Kubernetes configuration file (kubeconfig) to connect the cluster to GlobalAI. You can either:
    • Upload file: Click on the upload area to upload your kubeconfig file.
    • Paste content: Paste the content of your file inside the Cluster Config textfield.

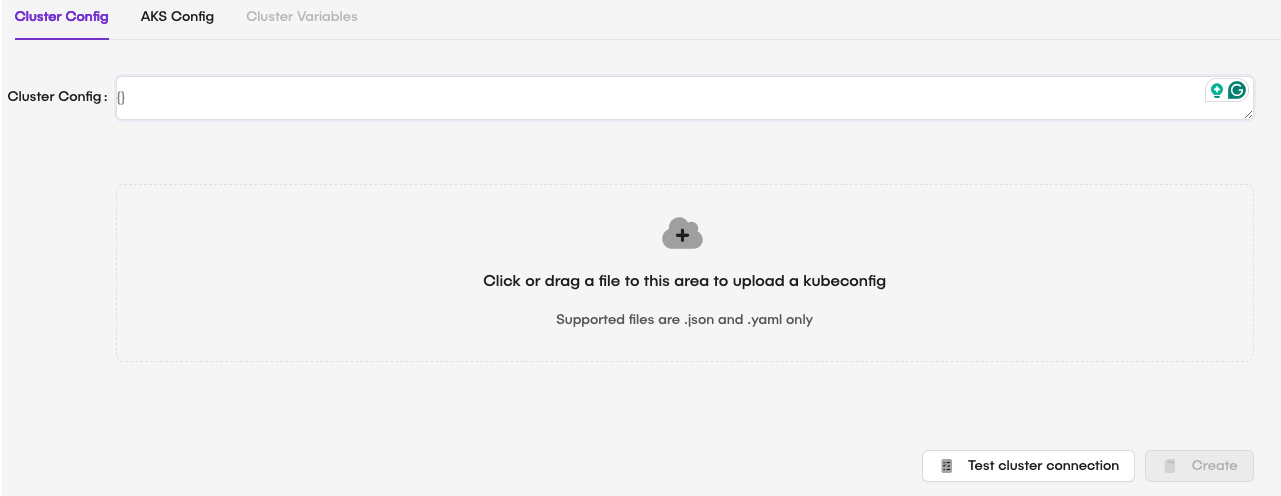

Cluster Config
  1. After filling in all the details and verifying the connection, click Create to add the new cluster to GlobalAI.

To use the** AKS Config** option, follow these steps:

  1. On the AKS Config tab, you will need to fill the required details to connect an Azure Kubernetes Service (AKS) cluster to GlobalAI:
    • AKS Name: Provide the name of the AKS cluster.
    • Client ID: Provide the Client ID for the AKS cluster.
    • Client Secret: Provide the Client Secret for the AKS cluster.
    • Tenant ID: Provide the Tenant ID for the AKS cluster.
    • Subscription ID: Provide the Subscription ID for the AKS cluster.
    • Resource Group: Provide the Resource Group for the AKS cluster.

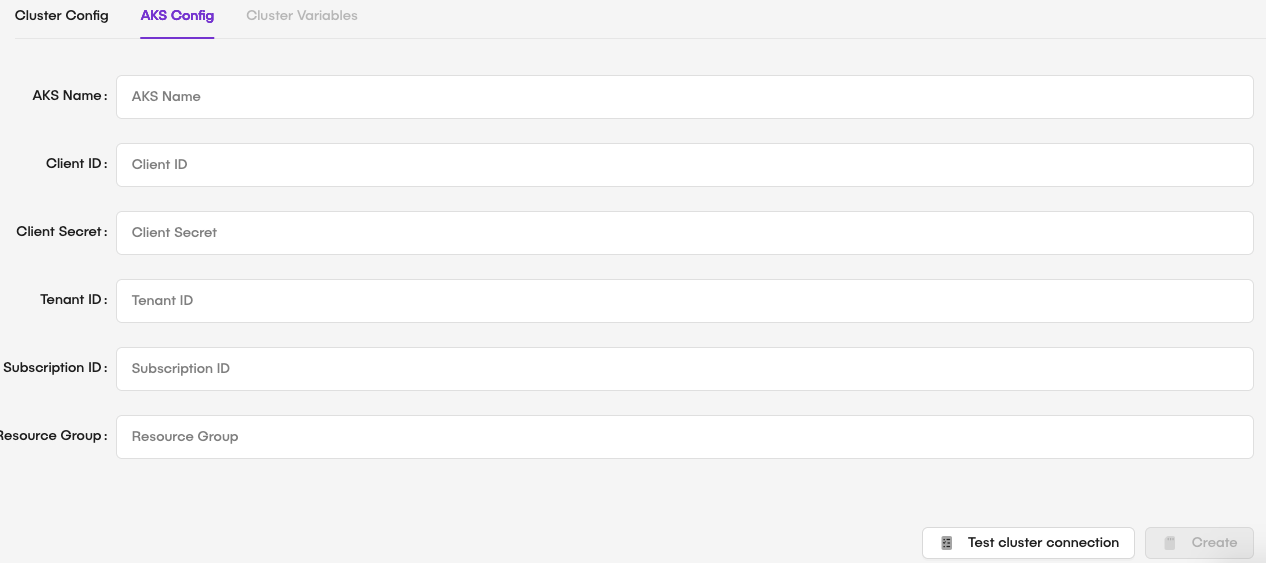

AKS Config
  1. After filling in all the details, click Create to add the new cluster to GlobalAI.
Test connection before saving

It is recommended to click the Test cluster connection button to verify that the provided kubeconfig file is valid and that GlobalAI can connect to the cluster before saving.

Manage clusters​

After your cluster is created, you can manage it from the Clusters page. Here, you can view the list of clusters, edit their details, or delete them as needed.

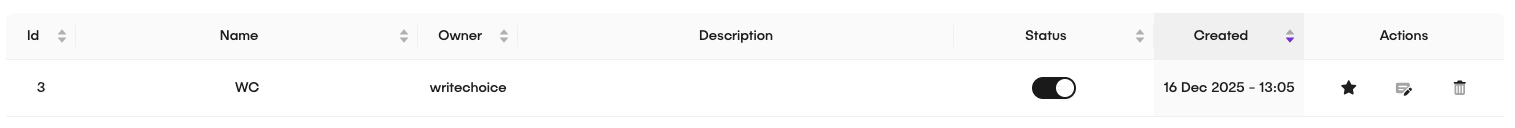

Clusters List

Edit a cluster​

To edit an existing cluster, follow these steps:

  1. On the GlobalAI dashboard, access the Clusters section on the sidebar.
  2. Locate the cluster you want to edit from the list.
  3. Click on the Edit button next to the cluster.

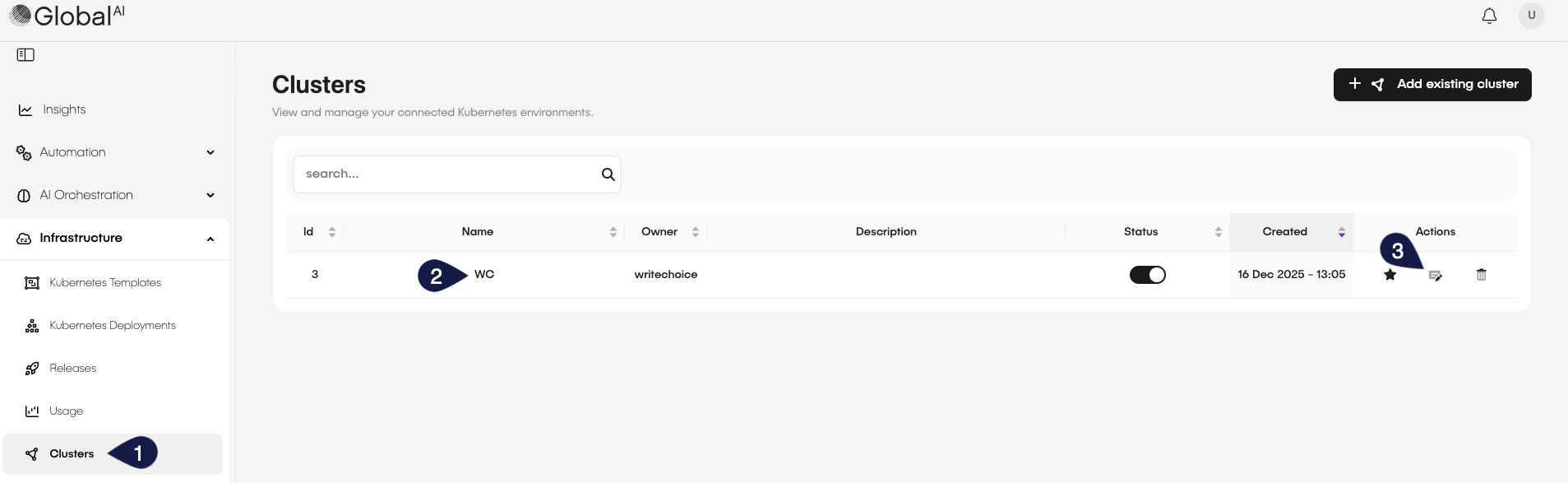

Edit Cluster Button

Delete a cluster​

To delete a cluster, follow these steps:

  1. On the GlobalAI dashboard, access the Clusters section on the sidebar.
  2. Locate the cluster you want to delete from the list.
  3. Click on the Delete button next to the cluster.

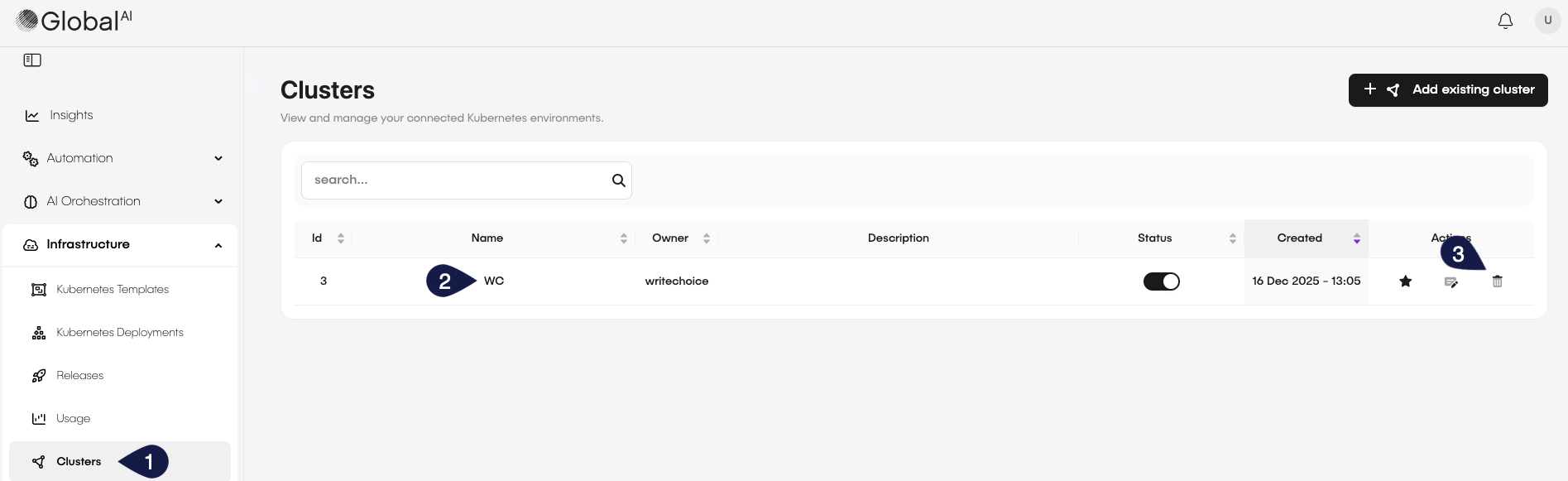

Delete Cluster Button
  1. On the confirmation modal, you will have three options:
    • No: Click this button to cancel the deletion process.
    • Delete: Click this button to delete the cluster without deleting associated resources.
    • Hard delete: Click this button to delete the cluster along with all associated resources.

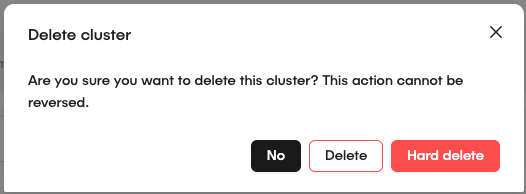

Delete Cluster Confirmation Modal
